Industrial Tapered Roller Bearings Manufacturers Heavy Duty Roller Bearing 32310

  • 1
  • 2
  • 3

Brand Name : Kesle

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,Western Union,MoneyGram,PayPal

Delivery Time : 5-8 work days

Type : Tapered Roller Bearing

Bearing Material : Bearing Steel GCr15

Bore : 50 mm

Outer Diameter : 110 mm

Width : 42.25 mm

Model : Customizable

Contact Now

32310 Tapered Roller Bearing: Heavy Duty Performance For Industrial
Basic Parameters
  • Bore diameter (d):50mm
  • Outer diameter (D):110mm
  • Width (T):40mm ~ 42.25mm
  • Weight:Approximately 1.7~1.9kg
  • Contact angle:12.95° (standard); special versions may feature increased angles (25°~29°)
Core Performance Parameters
  • Dynamic load rating (Cr):173kN ~ 211kN
  • Static load rating (C0r):211kN ~ 212kN
  • Material:GCr15/SUJ2 high-carbon chromium bearing steel (surface hardness HRC58-62 after heat treatment)
  • Precision class:P0 (standard)
  • Limiting speed:4,500~6,300rpm (grease-lubricated)
Structural & Adaptability Parameters
  • Structure:Separable (inner ring + roller assembly and outer ring are independent)
  • Tolerance compatibility:Shaft tolerances (H7/k6); housing bore tolerances (J7)
  • Standard compliance:ISO 355
  • Environmental adaptability:
    • Temperature resistance:Up to 816°C (stainless steel variants)
    • Corrosion resistance:Available in stainless steel (e.g., SUS321) for corrosive environments
Application & Maintenance Parameters
  • Typical application scenarios:
    • Heavy-duty machinery (mining crushers, conveyors, gearboxes)
    • Agricultural equipment (tractor wheel hubs, harvester transmissions)
    • Automotive (heavy-duty truck rear axles, differentials)
    • Energy equipment (wind turbine gearboxes, oil/gas pumps)
  • Lubrication:
    • Grease lubrication:Lithium-based grease (filling volume 10%-15% of bearing cavity); synthetic grease for high-temperature scenarios
    • Oil lubrication:Suitable for high-speed/high-temperature operations (circulating oil systems recommended)
  • Sealing options:
    • Standard:Open design
    • Optional:2RS (rubber seals), XAK (metal shields) (for dust/moisture protection)
Customization & Compatibility
  • Adjustable parameters:
    • Bore tolerances (P5 precision available)
    • Contact angles (15°~29° for special orders)
    • Surface coatings (phosphating, black oxide) for enhanced corrosion resistance
  • Compatibility:Compliant with general specifications, supporting direct replacement of standard models
  • Certifications:ISO 355
Industrial Tapered Roller Bearings Manufacturers Heavy Duty Roller Bearing 32310

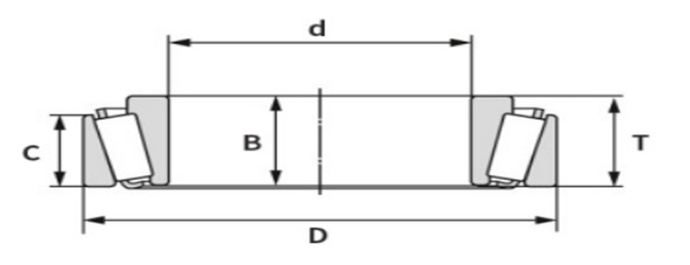

Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D T B C R
min		 r
min		 C C0 kg
32303 17 47 20.25 19 16 1.00 1.00 35.30 36.30 0.173
32304 20 52 22.25 21 18 1.50 1.50 46.00 47.50 0.241
32305 25 62 25.25 24 20 1.50 1.50 61.60 68.80 0.368
32306 30 72 28.75 27 23 1.50 1.50 81.60 96.40 0.563
32307 35 80 32.75 31 25 2.00 1.50 99.00 118.30 0.767
32308 40 90 35.25 33 27 2.00 1.50 115.70 147.80 1.049
32309 45 100 38.25 36 30 2.00 1.50 145.30 189.40 1.410
32310 50 110 42.25 40 33 2.50 2.00 177.50 236.10 1.936
32311 55 120 45.50 43 35 2.50 2.00 203.00 271.00 2.350
32312 60 130 48.50 46 37 3.00 2.50 226.70 303.00 2.900
32313 65 140 51.00 48 39 3.00 2.50 259.60 349.80 3.530
32314 70 150 54.00 51 42 3.00 2.50 298.90 408.50 4.350
32315 75 160 58.00 55 45 3.00 2.50 355.00 470.00 5.350
32316 80 170 61.50 58 48 3.00 2.50 378.00 497.00 6.320
32317 85 180 63.50 60 49 4.00 3.00 439.00 587.00 7.420
32318 90 190 67.50 64 53 4.00 3.00 461.00 614.00 8.610
32319 95 200 71.50 67 55 4.00 3.00 517.00 695.00 10.100
32320 100 215 77.50 73 60 4.00 3.00 491.00 637.00 12.200
